Door Pulls and Fixed Knobs

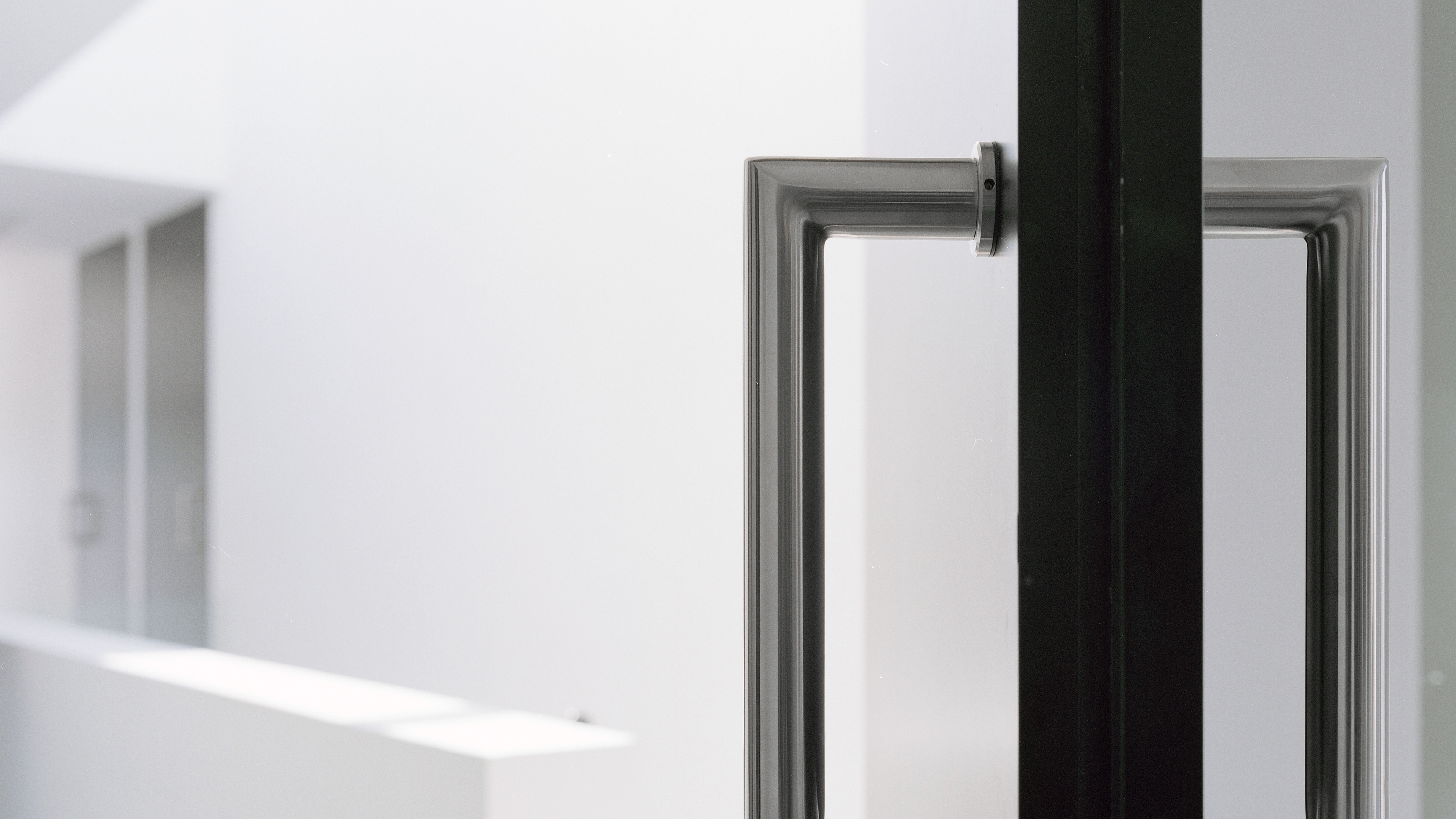

FSB Door Pull

Be it in the form of classic tubular pulls in round or oval cross-section or of pared-down push/pull pad handles from the S-Flat series which are angular or square in cross-section, FSB has the perfect design at hand for any door and taste.

Details

FSB has added to its traditional tubular puII handle range with a comprehensive collection of oval and flat designs. All pull handles adapt to a wide variety of fastening methods. The traditional range of push/pull pad handles and profiles with brackets has also been further developed.

ln principle, FSB supplies its entire pull handle range in either aluminum, stainless steel, brass and bronze, with stainless steel being particularly recommended for heavy-duty applications. Aluminum pulls are available in a variety of anodized finishes. The durable stainless steel pulls are supplied in a satin or polished finish. Brass and bronze pulls are offered in a selection of styles when these base materials and finish options are desired.

Pulls can be mounted using various methods on a variety of door types and materials. FSB offers the four fastening options including: back-to-back fastening (A), through-bolted fastening (B), concealed fastening with threaded insert (for solid doors) (C), concealed fastening with drop clamp (for hollow doors) (D).

Overview

FSB Round Oval Pull

Round and Oval Series

Traditional round cross section tubular pulls with design-conscious and patented bracket fixtures are a staple of the FSB Pull offering.

FSB has developed an alternative to the traditional round pulls adopting the formula “diagonal + oval = ideal gripping” identified by FSB that reduces the amount of effort required to take hold of and operate the handles on entrance doors. The oval styling offers the market a new gripping quality for eye and hand which FSB has had copyright protected. The experience FSB has amassed now allows it to supply almost all its traditional styles both as circular pulls and as optimized grip oval variants. A new flattened oval pull series airily and elegantly underpins architectural solutions.

Custom lengths can be provided for several of our round and oval pulls. Where it is possible we provide a sheet to be populated with the desired dimensions.

FSB Square Pull

Square or Flat Series

In addition to the traditional round pulls of circular or oval cross-section, FSB offers both square and flat style pulls. These pulls are essential to complete the overall design look and feel to accompany other hardware in the same design family. Available in stainless steel only

Custom lengths and varying mounting styles can be provided for several of these styles.

FSB S-Flat Series Pull

S-Flat Series

The new “S-Flat” push/pull pad handle series designed by the established designer Hartmut Weise. In the best Bauhaus tradition, he opted for a geometrical approach in his concept that sees every angular handle matched by a rounded counterpart. The S-Flat handles are available in various dimensions and open or closed forms.

Technical information

Assembly scenario

Pulls can be either face or through-fixed to doors made of the most diverse of materials.

As regards the issue of face fixing versus bolt through-fixing, FSB wishes to point out that the threaded-insert technique it adopts makes for face fixing that, as well as being aesthetically pleasing, is also sufficiently durable as a rule. This needs to be qualified, however, in the case of heavy-duty applications, (i. e. in schools, office blocks and other public institutions): here, we emphatically recommend bolt through-fixing, which ensures that the furniture remains fit for use even after years of heavy treatment, since the forces involved are absorbed on both sides of the door.

Clamping-rose fixing method

FSB’s clamping-rose fixing method allows all FSB door pulls with round shanks to be tightened fast against any door face by means of an easy-to-assemble clamping rose. Visible screws are dispensed with. The radial play engineered into the assembly by FSB ensures the requisite compensatory tolerances during fitting.

Safety clearance (S)

When fitting a handle to the closing or slamming face of a door, a safety clearance needs to be allowed for between the handle and the edge of the door and the jamb. The assembly scenario is made more readily comprehensible by the sketch below. Ideally, the safety clearances as recommended by FSB should be adhered to.

Product Chart

66 6522
Pull handle
66 6533
Pull handle
66 6534
Pull handle
66 6535
Pull handle
66 6536
Pull handle
66 6537
Pull handle
66 6538
Pull handle
66 6542
Pull handle
66 6610
Pull handle
66 6611
Pull handle
66 6612
Pull handle
66 6613
Pull handle
66 6635
Pull handle
66 6650
Pull handle
66 6652
Pull handle
66 6506
Pull handle
66 6507
Pull handle
66 6514
Pull handle
66 6522
Pull handle
66 6526
Pull handle
66 6541
Pull handle
66 6546
Pull handle
66 6602
Pull handle
66 6615
Pull handle
66 6616
Pull handle
66 6630
Pull handle
66 6642
Pull handle
66 6643
Pull handle
66 6653
Pull handle
66 6655
Pull handle
66 6662
Pull handle
66 6669
Pull handle
66 6674
Pull handle
66 6675
Pull handle
66 6679
Pull handle
66 6681
Pull handle
66 6683
Pull handle
61 6186
Push handle
61 6187
Push handle
61 6188
Push handle
61 6190
Push handle
61 6191
Push handle
61 6192
Push handle
61 6193
Push handle
61 6254
Push handle
61 6268
Push handle
